The Excavation Contractor KPI Dashboard in Excel puts 15 KPIs, five KPI groups and three live charts into one workbook, driven by a single month dropdown. For every KPI it shows MTD and YTD actual, target, achievement %, a traffic-light status, prior year and year-on-year movement. On the July 2025 sample, 8 KPIs are On Target for the year, 3 are At Risk and 4 are Missed, with average achievement of 96.2% for the month and 97.2% for the year.
Excavation margins are decided by a handful of numbers most firms already collect but rarely see together: how many cubic yards the crews moved, how often a grade had to be redone, how many hours machines sat broken, and what each cubic yard really cost. This workbook lays those numbers out month by month against target and last year, so the monthly meeting starts from facts rather than from whoever shouts loudest.
First, Which Template Is This?
NextGenTemplates publishes three similarly named lines, and they are different files.
- This is the KPI Dashboard line. A month picker, seven summary cards, one row per KPI with full MTD and YTD blocks, plus dedicated KPI Trend and KPI Analysis pages.
- The KPI Scorecard line is lighter, built around ten KPIs. A separate Excavation Contractor KPI Scorecard edition exists in that line.
- The analytical Dashboard line charts a transaction table through slicers and pivots, for slicing detail rather than reporting a governed KPI set.
Key Features of the Excavation KPI Dashboard
- One dropdown drives everything. Cell D6 on the KPI Dashboard sheet lists the twelve months of the reporting year. The 15 rows, the seven cards and the KPI Analysis page all follow it, with no refresh and no query.
- Direction-aware achievement. Nine KPIs are UTB (upper the better) and six are LTB (lower the better). Achievement is Actual / Target for UTB and Target / Actual for LTB, so beating a cost or downtime target scores above 100% instead of reading as a miss.
- Traffic lights you control. On Target from 100%, At Risk from 95% to 99%, Missed below 95%. The thresholds live in plain formulas in columns L and U, so you can match your own governance.
- Growth without formula work. The sheets are wired for 22 KPI rows. Fifteen are used, so seven more KPIs can be added on KPI Definition and flow everywhere automatically.
- Plain formulas only. No macros, no Power Query, no Power Pivot, no add-ins. It opens in Excel 2013 and later and in Excel for the web.
Dashboard Pages Explanation
Home

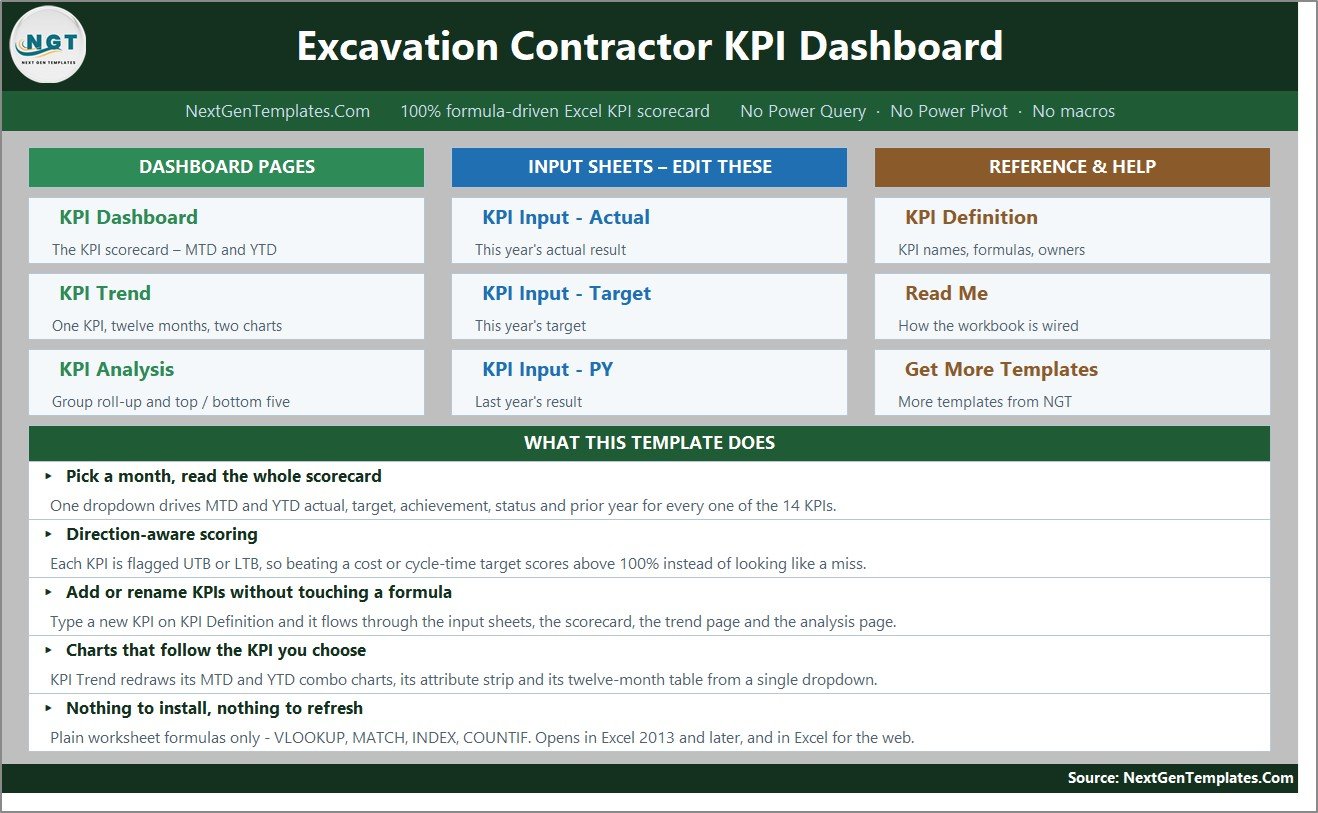

A launcher with a tile for every sheet, grouped into dashboard pages, input sheets and reference sheets, plus a short summary of what the file does.
KPI Dashboard

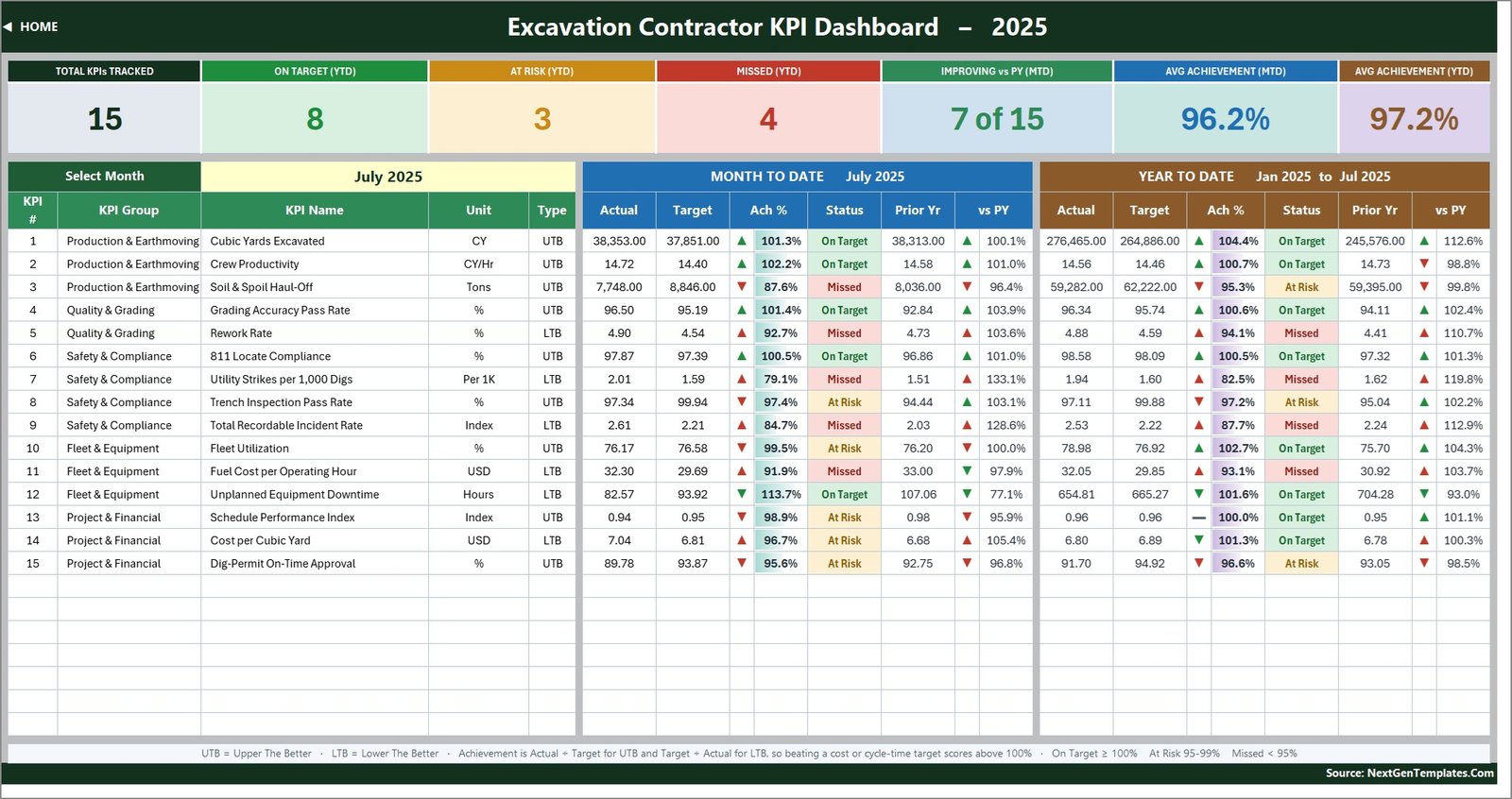

The scorecard. Seven cards across the top – Total KPIs Tracked, On Target (YTD), At Risk (YTD), Missed (YTD), Improving vs PY (MTD), Avg Achievement (MTD) and Avg Achievement (YTD) – read 15, 8, 3, 4, 7 of 15, 96.2% and 97.2% on the sample. Below them, each KPI has its group, unit, type and a full MTD and YTD block.
KPI Trend

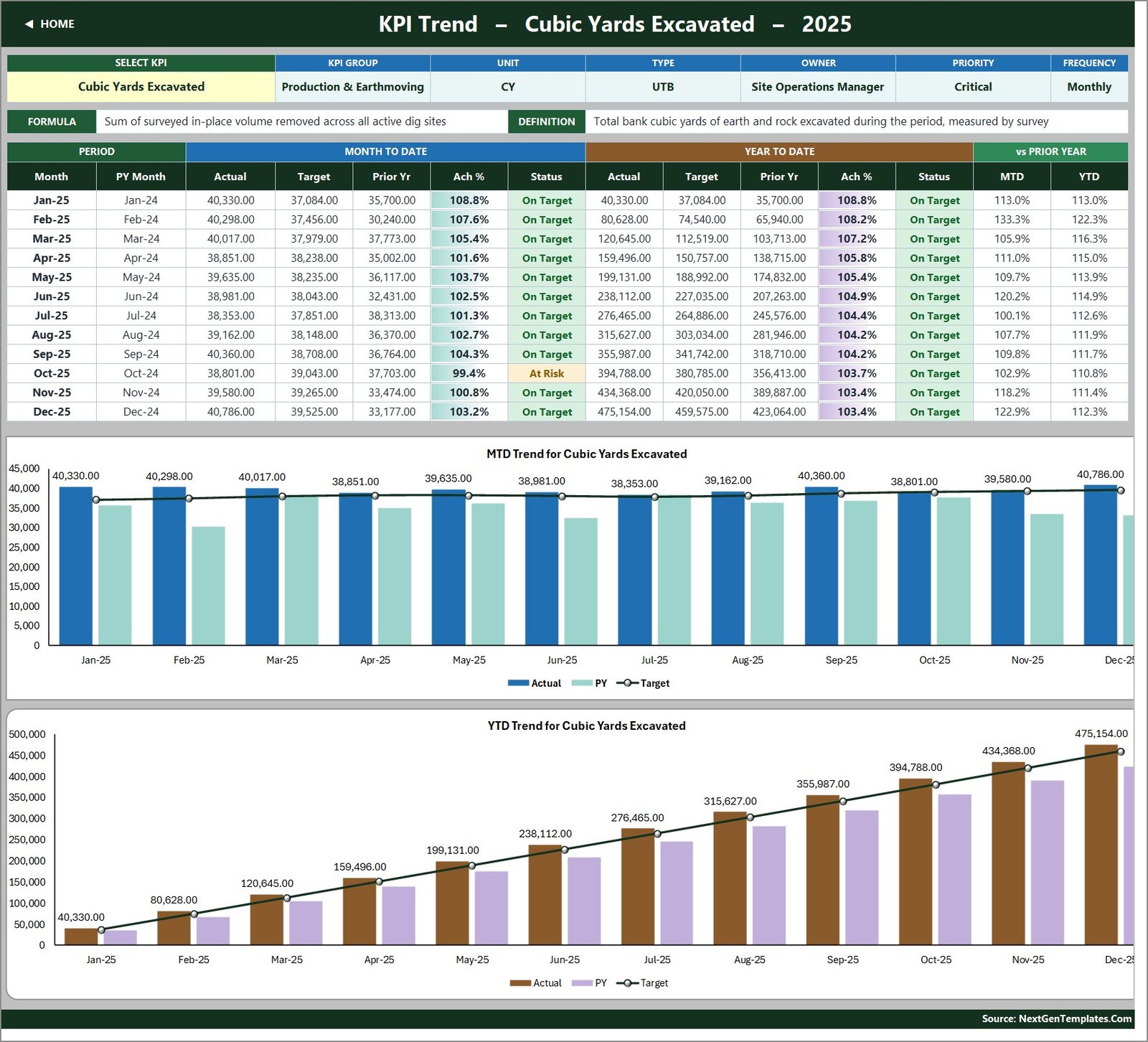

Pick any KPI in cell B4 and the page redraws: group, unit, type, owner, priority and frequency, the formula and definition, a twelve-month table, and two combo charts – MTD Trend and YTD Trend – with actual and prior-year columns and a target line. On the sample, Cubic Yards Excavated is On Target in eleven months, dips to 99.4% in October, and ends the year at 475,154 CY against a 459,575 CY target.
KPI Analysis

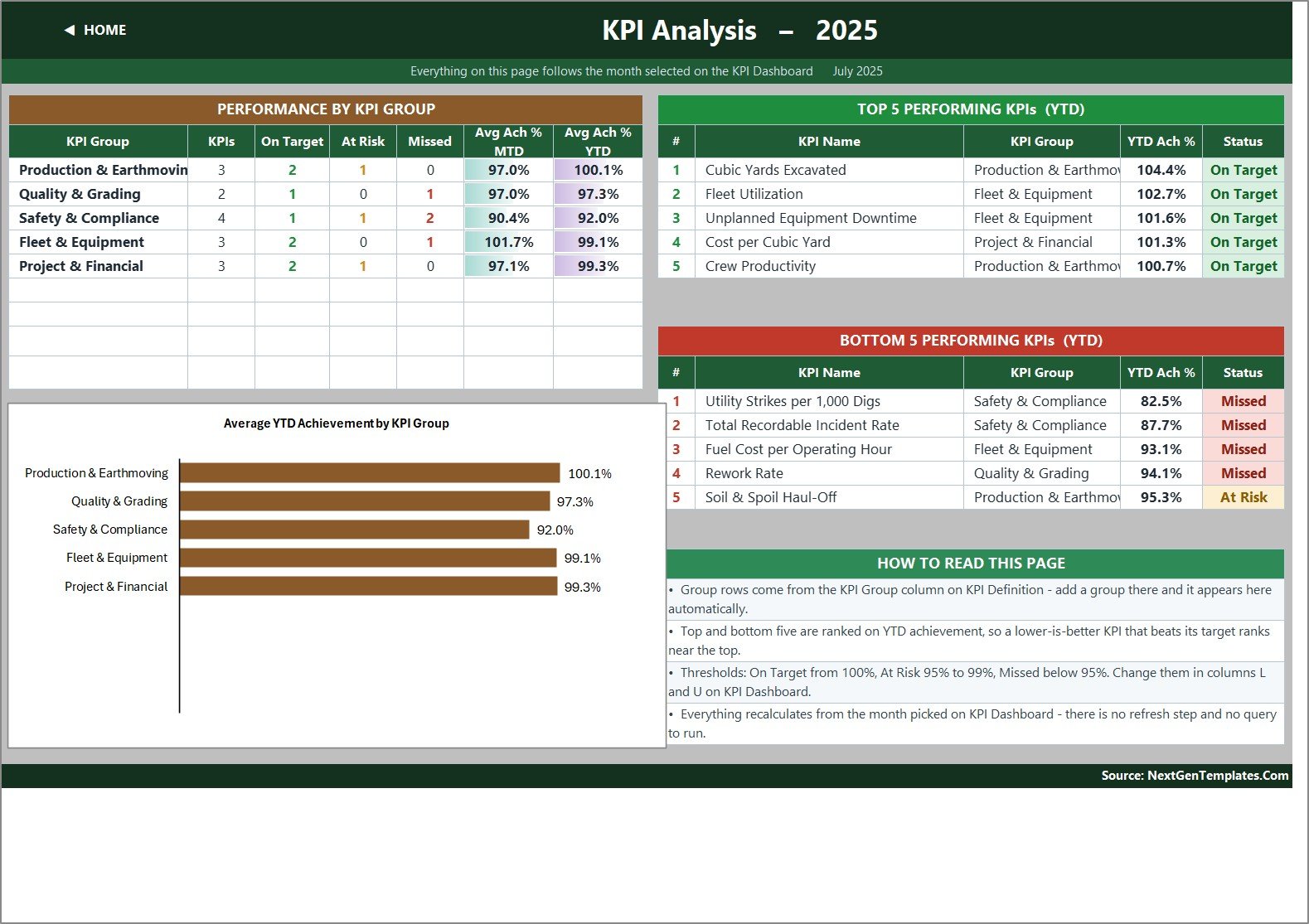

Counts On Target, At Risk and Missed per group, averages MTD and YTD achievement per group, charts Average YTD Achievement by KPI Group, and ranks the top and bottom five KPIs on YTD achievement. The top five on the sample are Cubic Yards Excavated (104.4%), Fleet Utilization (102.7%), Unplanned Equipment Downtime (101.6%), Cost per Cubic Yard (101.3%) and Crew Productivity (100.7%).
KPI Input – Actual, Target and PY
The three sheets you type in, each with an MTD and a YTD column per month. Cell E3 on the Actual sheet sets the first month of the year, and the other two sheets inherit their month headers from it.
KPI Definition, Read Me and Get More Templates

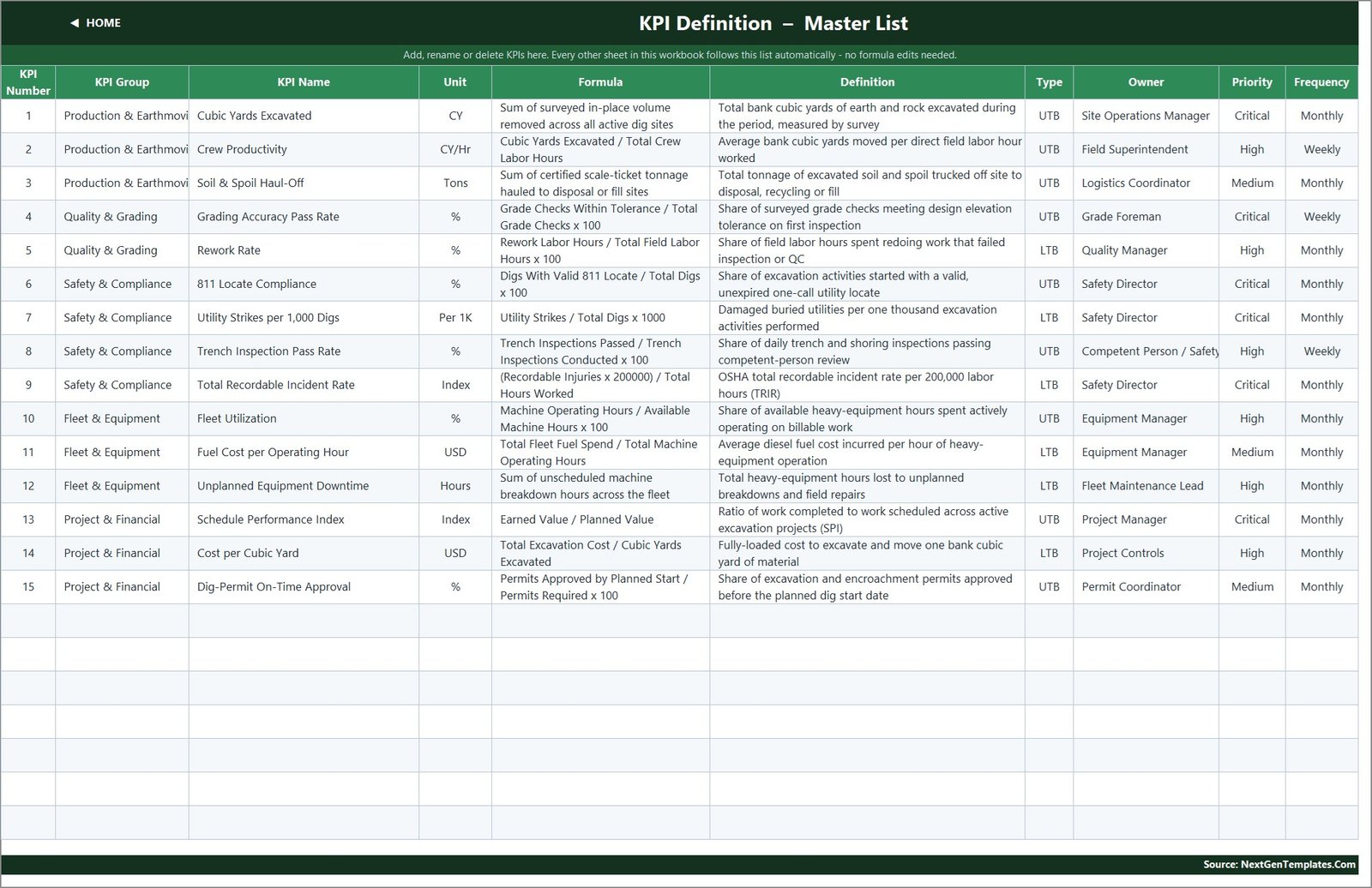

KPI Definition is the master list every sheet reads: group, name, unit, formula, definition, type, owner, priority and frequency. Read Me explains how the workbook is wired, and Get More Templates links to the wider catalogue. A Support sheet holds helper calculations and needs no editing.
The 15 KPIs, Group by Group
- Production & Earthmoving (3): Cubic Yards Excavated, Crew Productivity (CY per labor hour), Soil & Spoil Haul-Off (tons).
- Quality & Grading (2): Grading Accuracy Pass Rate, Rework Rate.
- Safety & Compliance (4): 811 Locate Compliance, Utility Strikes per 1,000 Digs, Trench Inspection Pass Rate, Total Recordable Incident Rate.
- Fleet & Equipment (3): Fleet Utilization, Fuel Cost per Operating Hour, Unplanned Equipment Downtime.
- Project & Financial (3): Schedule Performance Index, Cost per Cubic Yard, Dig-Permit On-Time Approval.
Two pairs are worth reading together. Grading Accuracy Pass Rate beside Rework Rate shows whether first-time grade checks are what is driving rework hours. Fleet Utilization beside Unplanned Equipment Downtime and Fuel Cost per Operating Hour shows whether a busy fleet is also a healthy one.
An honest note on the safety and permit KPIs. They are reporting lines over monthly figures you type in. The workbook does not raise or check one-call locate tickets, record trench or shoring inspections, keep injury logs or track permits, and it makes no OSHA, CDM, utility-locate or permit-compliance claim. Your competent person, safety programme and local authority remain the source of truth.
Excel KPI Dashboard vs. Google Sheets vs. Construction Management SaaS – Feature Comparison
| What you need | This Excel workbook | A Google Sheets KPI dashboard | Construction management SaaS |
|---|---|---|---|
| Cost | One-time purchase | One-time purchase | Recurring subscription |
| Time to first report | Minutes | Minutes | Weeks of implementation |
| Where the data sits | Your own file | Your Google Drive | The vendor’s cloud |
| Works offline | Yes | No | Usually no |
| Pulls numbers automatically | No – you type them | No | Often yes |
| Change a KPI or threshold | Type it, nothing is locked | Type it | Vendor settings |
| Real-time multi-user editing | No | Yes | Yes |
| Cost at 5 users | Same one-time price | Same one-time price | Five subscriptions |
For contractors who already collect monthly numbers and want a governed scorecard without a subscription, this workbook sits in the sweet spot.
Who Should Use This Template
Perfect for:
- Owners and general managers of excavation, earthmoving and site-preparation contractors.
- Operations managers, superintendents and grade foremen who review production and quality monthly.
- Equipment managers and project controls staff tracking fleet use, fuel, downtime, SPI and unit cost.
Not a fit if:
- You need job-, machine- or crew-level detail – the workbook stores one number per KPI per month.
- You want dispatch, telematics capture, locate tickets, inspection logs or permit tracking.
Real-World Use Cases
Monthly owner’s review at a 40-machine earthmoving firm. The owner picks last month and starts with the Missed rows. On the sample July those are Soil & Spoil Haul-Off, Rework Rate, Utility Strikes per 1,000 Digs, Total Recordable Incident Rate and Fuel Cost per Operating Hour – five conversations, each with prior year beside it.
A site-prep contractor chasing rework. The grade foreman reads Grading Accuracy Pass Rate on KPI Trend month by month, then compares it with Rework Rate to see whether better first-time grading is actually cutting rework hours.
A trenching subcontractor reporting upward. The KPI Analysis page gives one achievement figure per group – Safety & Compliance is the weakest at 92.0% YTD on the sample – which is usually all a general contractor’s monthly pack needs.
Advantages of the Excavation KPI Dashboard
- No subscription. A one-time purchase replaces a recurring reporting fee for monthly management KPIs.
- Numbers you can trace. Every figure is a worksheet formula over the input sheets, so an auditor or lender can follow it.
- Fair scoring for cost and downtime KPIs through the UTB and LTB flag.
- Fast to adopt. Type over the sample, pick a month, and the first report is ready.
Opportunities for Improvement
- Stale KPI count in text. The Home page and the Read Me page still say “14 KPIs”; the workbook ships 15, and every formula, card and chart counts all 15. It is plain text you can overtype.
- Borrowed examples in the Read Me. The “Cumulative or average YTD” row uses examples from another industry (“aircraft deliveries, non-conformance reports”). The rule it explains is correct.
- YTD is typed, not derived. That lets a rate be a running average instead of a sum, but it means two numbers per KPI per month.
- Single-user workbook. There is no live sharing or automatic data feed.
Best Practices
- Set the UTB or LTB flag for every KPI before entering numbers – it decides whether a rise is good news.
- Decide once whether each KPI’s YTD is a running total (Cubic Yards Excavated) or a running average (Crew Productivity), and keep it consistent.
- Agree targets from prior-year actuals on the PY sheet rather than round numbers.
- Protect the input sheets with Excel data validation if several people type into the file.
How to Set Up the Excavation Contractor KPI Dashboard in Excel
- Unzip and open the .xlsx. It lands on Home, with nothing to enable.
- Set the reporting year in cell E3 on KPI Input – Actual.
- Edit the KPI list on KPI Definition and set each Type.
- Type actual, target and prior-year numbers – MTD and YTD for each month.
- Pick a month in D6 on KPI Dashboard, then drill in on KPI Trend and KPI Analysis.
Explore Relevant Templates
- Paving Contractor KPI Dashboard in Excel – the same KPI Dashboard line for paving work.
- Concrete Contractor KPI Dashboard in Excel – for flatwork and structural concrete trades.
- Fencing Contractor KPI Dashboard in Excel – another site trade on the same month-picker structure.
- Tunnel Engineering KPI Dashboard in Excel – for underground and heavy civil work.
- Road and Highway Construction KPI Dashboard in Power BI – a Power BI option for larger civil programmes.
- Construction Project Intelligence Kit – six construction templates in one bundle.
Frequently Asked Questions
What KPIs does the excavation KPI dashboard track?
It tracks 15 KPIs in five groups, including Cubic Yards Excavated, Crew Productivity, Grading Accuracy Pass Rate, Utility Strikes per 1,000 Digs, Fleet Utilization, Schedule Performance Index and Cost per Cubic Yard. Each can be renamed on KPI Definition and the rest of the workbook follows.
How long does setup take?
A first report usually takes under an hour. Set the year in E3, adjust the KPI list, then type actual, target and prior-year figures over the sample. Picking a month in D6 updates the scorecard, cards and analysis page instantly.
Does it need macros?
No. The workbook is a plain .xlsx built on worksheet formulas such as VLOOKUP, MATCH, INDEX and COUNTIF. There is no VBA, Power Query or add-in, so it opens without a security prompt in Excel 2013 and later and in Excel for the web.
Does it verify 811 locates, trench inspections or permits?
No. Those KPIs report figures you enter each month. The workbook stores no locate tickets, inspection records, injury logs or permits and makes no compliance claim, so keep those records in the systems your safety programme and local authority require.
How does it compare with construction management SaaS?
SaaS platforms capture field data automatically for many users, for a recurring fee. This workbook is a one-time purchase for monthly KPI reporting over numbers you already collect, in a file you own and can change freely.
Is the sample data real?
No. The 2025 figures are demonstration data so every chart, card and traffic light is populated on opening. Delete them and type your own numbers.
About the Author
Built by PK and the NextGenTemplates team, who have spent years building Excel, Google Sheets and Power BI reporting tools for businesses. Every template ships with sample data, unlocked cells and formulas you can read and trace.
Conclusion
If your excavation business already tracks production, grading, fleet and cost numbers, this workbook turns them into one monthly scorecard with targets, prior year and a clear traffic light – without a subscription.
