Most insulation contractors already know their numbers. Board feet went out the door, the blower-door test either passed or it did not, the callback happened or it did not. What is usually missing is one page that puts all of it side by side, month by month, with a target next to every figure and an honest colour on the result. That is exactly what the Insulation Contractor KPI Dashboard in Excel does – 14 KPIs, one month dropdown, MTD and YTD together, and not a single macro.
First, Which Template Is This?
NextGenTemplates publishes three families whose names look almost identical, and mixing them up wastes money. This post is about the KPI Dashboard line: a month picker, traffic lights, and dedicated KPI Trend and KPI Analysis pages. It is not the analytical dashboard line that charts a transaction table through slicers, and it is not the lighter ten-KPI Insulation Contractor KPI Scorecard in Excel (or its Google Sheets twin). They sit next to each other rather than replace each other – the scorecard for a fast weekly glance, this dashboard for the monthly pack.
What You Actually Get
The download is a ZIP with the .xlsx workbook and the Excel KPI Dashboard User Manual PDF. The workbook has ten visible sheets and one hidden helper sheet:
- Home – a nine-tile launcher with a plain-English summary.
- KPI Dashboard – the scorecard. Month picker, seven summary cards, one row per KPI with a full MTD block and a full YTD block.
- KPI Trend – one KPI at a time: attribute strip, formula, definition, a twelve-month table and two combo charts.
- KPI Analysis – achievement rolled up by KPI group, a bar chart, and the top five and bottom five KPIs for the year to date.
- KPI Input – Actual / Target / PY – the only three sheets you normally type in.

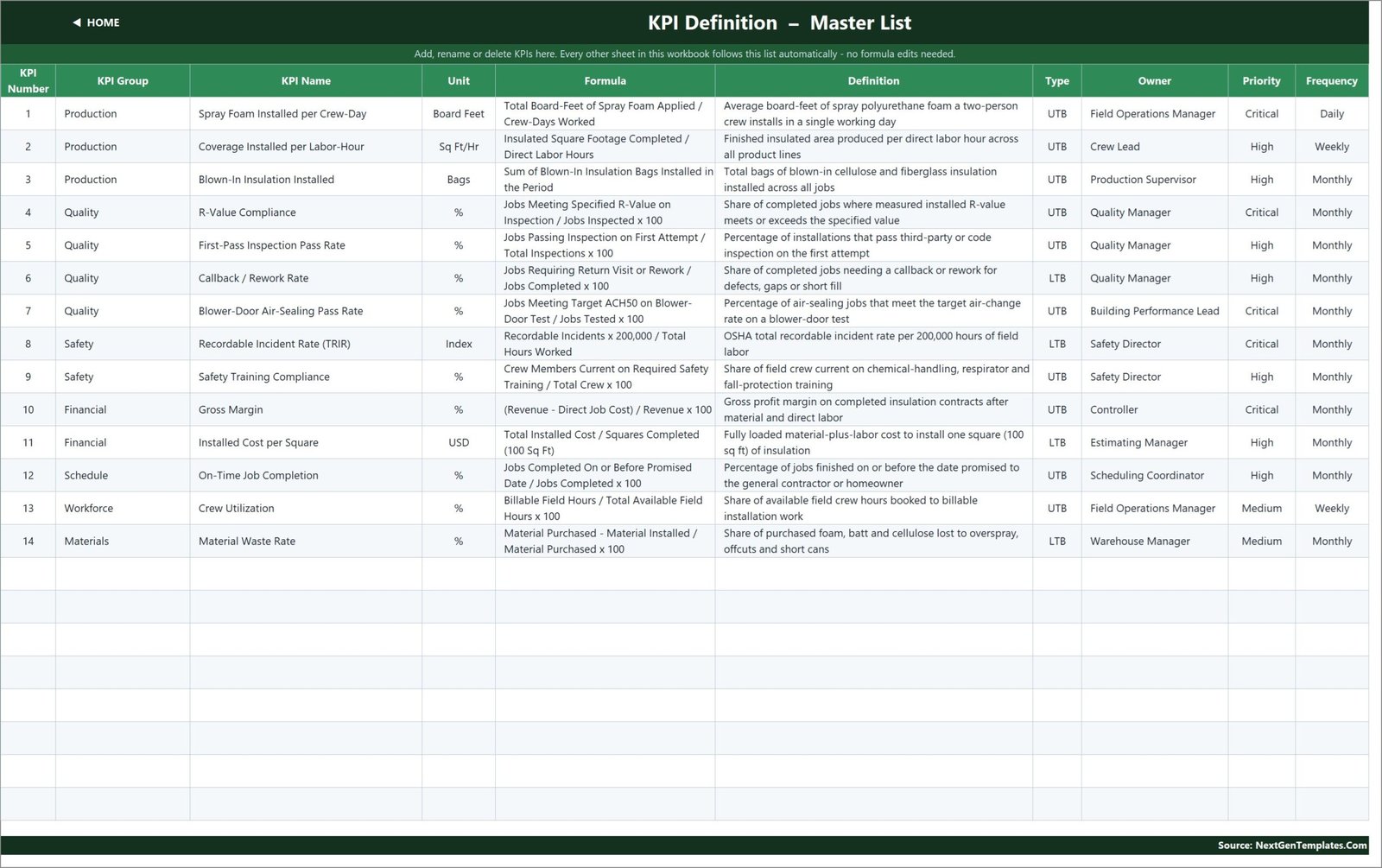

- KPI Definition – the master KPI list every other sheet reads.
- Read Me and Get More Templates – documentation and catalogue links.
- Support (hidden) – helper calculations. Nothing to edit.
The 14 KPIs, Group by Group
Seven groups. Ten of the KPIs are upper-the-better, four are lower-the-better, and the workbook scores each one accordingly.
| Group | KPIs | Unit | Direction |
|---|---|---|---|
| Production | Spray Foam Installed per Crew-Day | Board Feet | UTB |
| Production | Coverage Installed per Labor-Hour | Sq Ft/Hr | UTB |
| Production | Blown-In Insulation Installed | Bags | UTB |
| Quality | R-Value Compliance | % | UTB |
| Quality | First-Pass Inspection Pass Rate | % | UTB |
| Quality | Callback / Rework Rate | % | LTB |
| Quality | Blower-Door Air-Sealing Pass Rate | % | UTB |
| Safety | Recordable Incident Rate (TRIR) | Index | LTB |
| Safety | Safety Training Compliance | % | UTB |
| Financial | Gross Margin | % | UTB |
| Financial | Installed Cost per Square | USD | LTB |
| Schedule | On-Time Job Completion | % | UTB |
| Workforce | Crew Utilization | % | UTB |
| Materials | Material Waste Rate | % | LTB |
Every row also carries a formula in words, a plain-English definition, an owner (Field Operations Manager, Crew Lead, Production Supervisor, Quality Manager, Building Performance Lead, Safety Director, Controller, Estimating Manager, Scheduling Coordinator, Warehouse Manager) and a Critical / High / Medium priority.
Why the UTB / LTB Flag Is the Most Important Field in the File
This is the part that separates a real KPI scorecard from a coloured table. Achievement is calculated as Actual / Target for an upper-the-better KPI and Target / Actual for a lower-the-better one. So when Material Waste Rate comes in at 5.65% against a 6.81% target, the file scores it 120.5% and paints it green with a green down-arrow – not 83% and red. And when the Recordable Incident Rate rises from 2.75 to 3.02, it scores 91.1%, goes red, and shows a red up-arrow, because for that KPI up is bad.
Get this flag wrong on a safety metric and your dashboard tells you more injuries is a better result. This build has it right on all four lower-is-better KPIs: Callback / Rework Rate, Recordable Incident Rate (TRIR), Installed Cost per Square and Material Waste Rate. Worth checking on any KPI template you buy, from anyone.

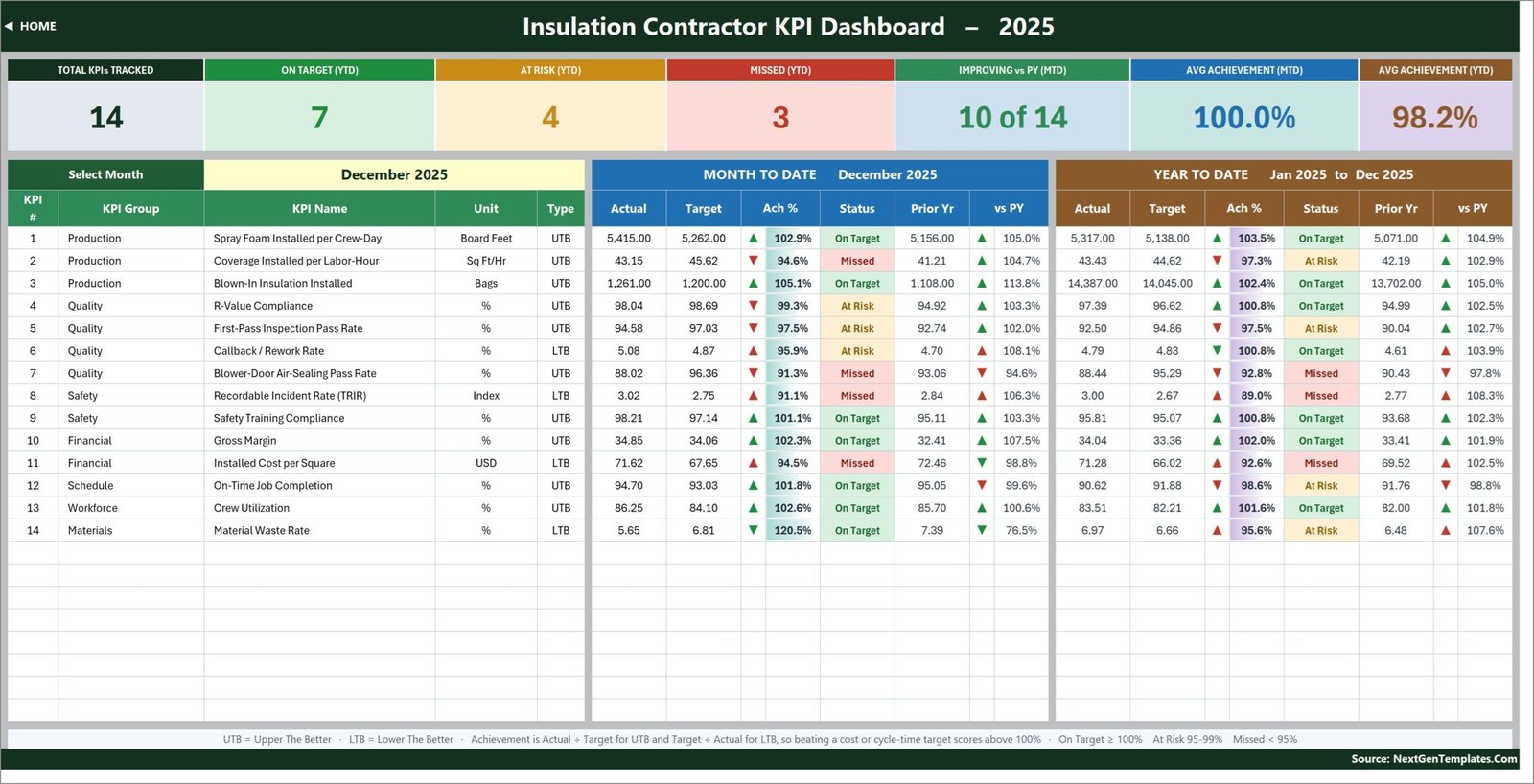

The Seven Summary Cards
Across the top of the scorecard: Total KPIs Tracked, On Target (YTD), At Risk (YTD), Missed (YTD), Improving vs PY (MTD), Avg Achievement (MTD) and Avg Achievement (YTD). In the shipped December 2025 sample they read 14 / 7 / 4 / 3 / 10 of 14 / 100.0% / 98.2%. They are formulas that recount themselves, so if you delete a KPI the cards follow.
Status thresholds are On Target from 100%, At Risk 95-99% and Missed below 95%. Those cut-offs live in the status formulas in columns L and U on the KPI Dashboard sheet, so you can move them to match your own governance rather than living with someone else’s.

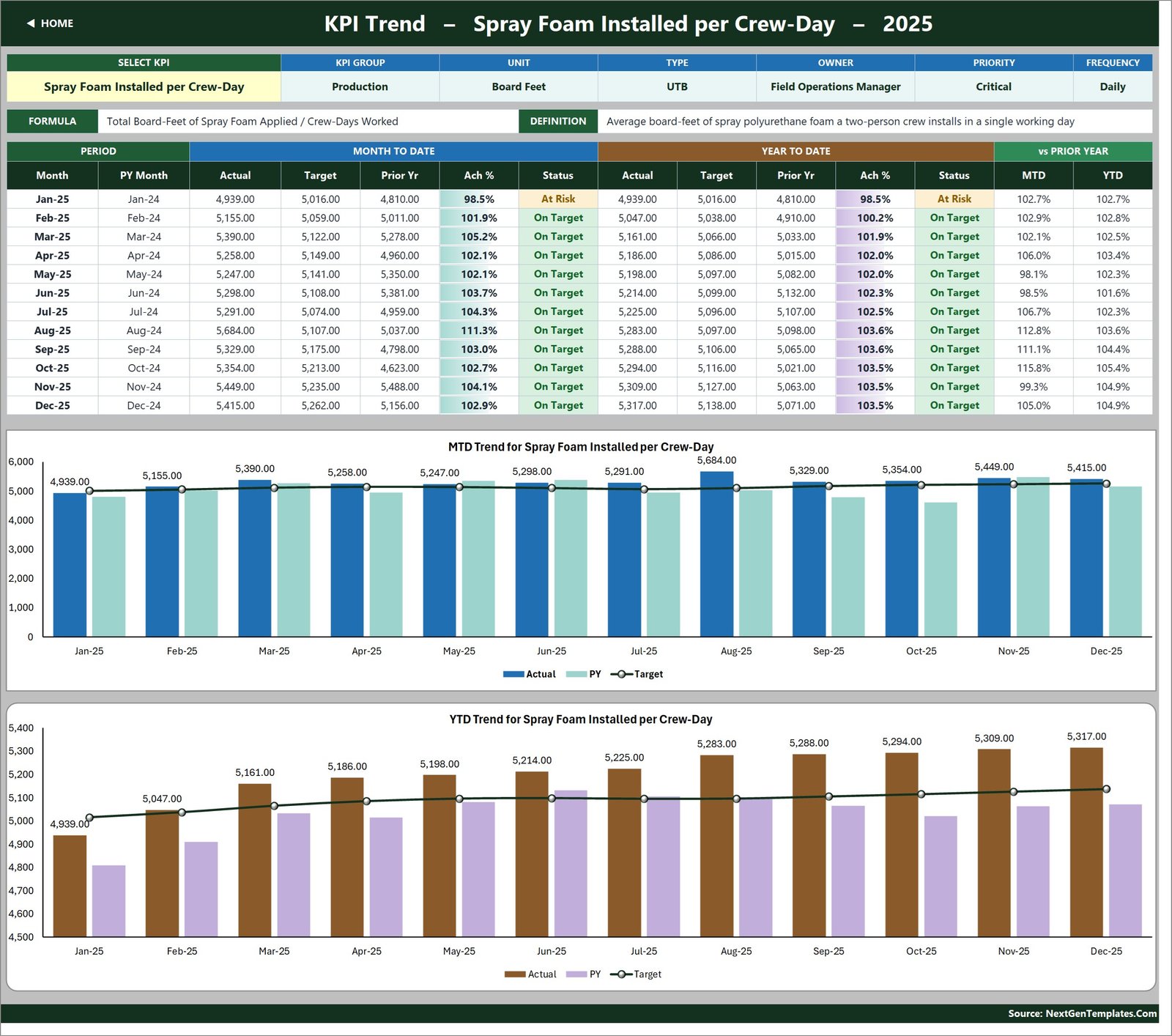

The Trend Page
Pick any KPI from the dropdown on KPI Trend and the whole page follows: the attribute strip, the formula and definition, a twelve-month table with MTD and YTD achievement and status for each month, and two combo charts – actual and prior-year columns with a target line drawn over them, one for MTD and one for YTD.

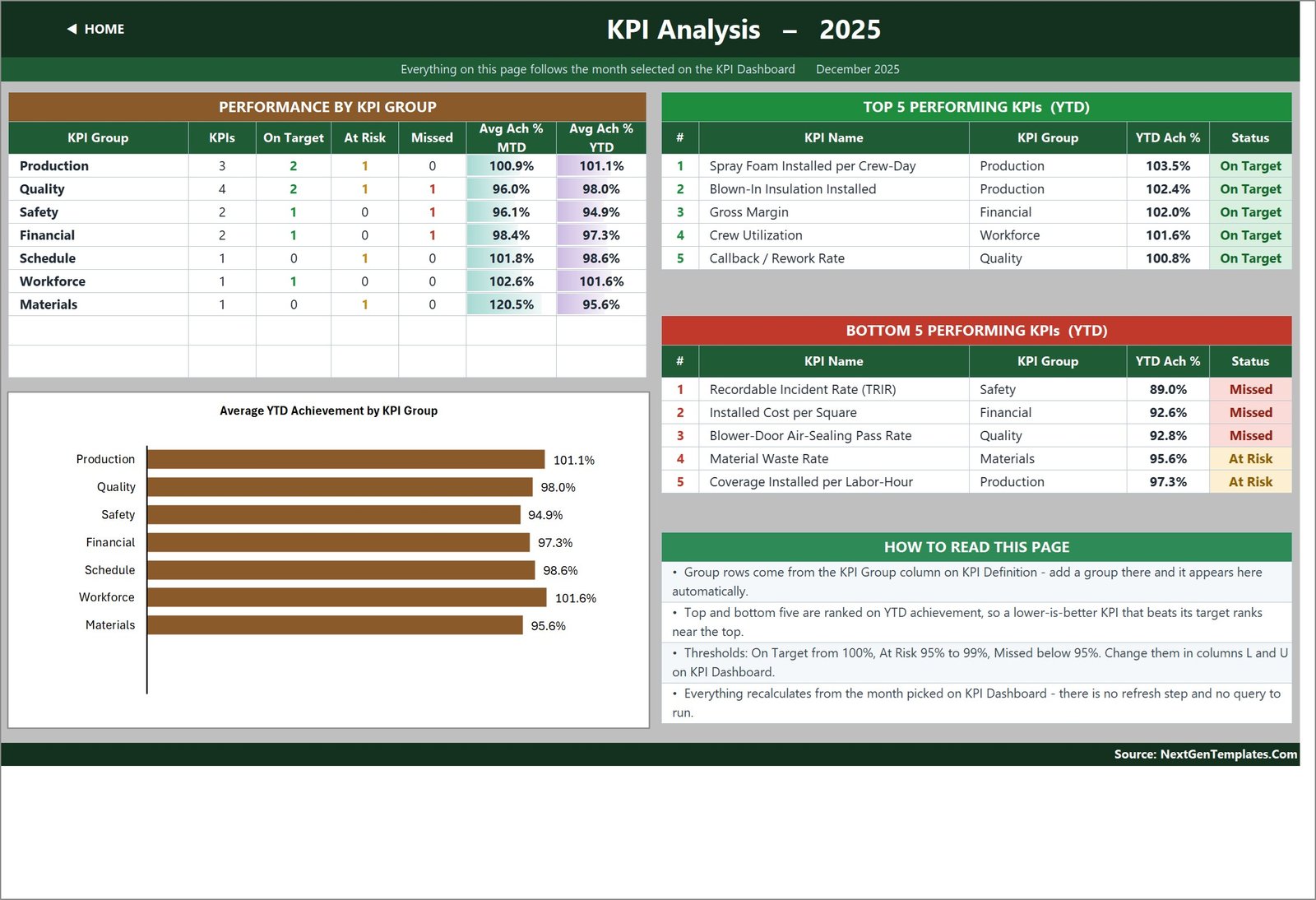

The Analysis Page
KPI Analysis answers the question a monthly meeting actually asks: which part of the business is dragging? It counts On Target / At Risk / Missed per KPI group, averages MTD and YTD achievement per group, draws a bar chart of average YTD achievement by group, and ranks the top five and bottom five KPIs on YTD achievement. In the sample December, the bottom three are Recordable Incident Rate (89.0%), Installed Cost per Square (92.6%) and Blower-Door Air-Sealing Pass Rate (92.8%) – so the conversation starts in the right place instead of with whoever speaks first.
How It Compares
| What you need | This Excel KPI Dashboard | A Google Sheets KPI scorecard | Construction / field-service SaaS |
|---|---|---|---|
| Cost | One-off, lifetime access | One-off, similar | Typically 50-300+ per user per month |
| Setup | Open it, type over the sample data | Copy the sheet, type your numbers | Implementation, mapping, training |
| Where the data lives | Your own file | Your Google Drive | The vendor’s cloud |
| Offline | Yes | No | No |
| Automatic capture from job costing | No – you type the numbers | No | Yes |
| Change a KPI or a threshold | Type it, every cell unlocked | Type it | Vendor roadmap or paid work |
How to Set It Up in Ten Minutes
- Unzip and open the .xlsx. It lands on Home. Nothing to enable.
- Set cell E3 on KPI Input – Actual to the first month of your reporting year. The Target sheet, the PY sheet, the month dropdown and every sheet title re-base themselves.
- Edit the 14 rows on KPI Definition – rename, re-group, delete, or fill an empty row to add a fifteenth. Set the Type column (UTB or LTB) carefully.
- Type your numbers onto the three input sheets, an MTD and a YTD figure per month.
- Pick a month in D6 on KPI Dashboard.
- Adjust the 100 / 95 thresholds in columns L and U if your governance differs.
Opportunities for Improvement – the Honest Bit
Every template review on this site says what is not perfect, and this one is no exception.
- Read Me carries example wording from another industry. The “Cumulative or average YTD” row explains the rule correctly but illustrates it with “aircraft deliveries, non-conformance reports” – leftover text from a different build. The rule is right; the examples are not insulation ones. It is one editable cell.
- MTD and YTD are both typed. The workbook does not derive year-to-date from the monthly cells. That is a deliberate trade-off – it lets you keep volumes cumulative and rates as running averages – but it means two numbers per KPI per month rather than one, and nothing cross-checks them.
- The Frequency column is a label, not a switch. KPI Definition marks Spray Foam Installed per Crew-Day as Daily and Crew Utilization as Weekly, but all 14 KPIs sit on the same monthly grid. Treat it as documentation.
- It is not a safety or OSHA system. TRIR is a number you type. There is no incident log, no OSHA 300 or 300A form, no near-miss register and no corrective-action workflow. Keep those where they already live.
- No job-level or crew-level detail. One number per KPI per month, and no takeoff or estimating engine.
Things that are not wrong here and often are on templates of this type: the KPI count is consistent (14 on the Home page, 14 in the Read Me, 14 in the file), every KPI series actually moves month to month rather than sitting flat, and the number formatting is standard – no stray regional digit grouping anywhere in the workbook.
Frequently Asked Questions
Does it use macros? No. Plain .xlsx, worksheet formulas only – VLOOKUP, MATCH, INDEX, COUNTIF. No VBA, no Power Query, no Power Pivot, no add-ins.
Which versions of Excel? Excel 2013 and later, Excel for Mac, Microsoft 365 and Excel for the web.
Can I add more KPIs? Yes – the sheets are wired for 22 and 14 are used, so eight more need no formula work. Beyond 22, select the last data row on each sheet and fill down, then widen the ranges in the summary cards on row 4 of KPI Dashboard.
Does it connect to my accounting software? No. You type the monthly numbers in.
Is the sample data real? No. The 2025 figures are demonstration data so that every card, chart and traffic light is populated on first open.
How is this different from the KPI Scorecard version? The scorecard is a lighter ten-KPI file. This dashboard ships 14 KPIs, seven summary cards, a dedicated trend page with two combo charts, and a full analysis page with a group roll-up and top/bottom five.
Are there other trades in this line? Yes – Masonry, Roofing, Carpentry, HVAC, Electrical, Plumbing, Painting, Flooring and Welding all have their own Excel KPI Dashboard, and a Drywall Contractor KPI Dashboard in Excel is on the way.
Get the Template
The Insulation Contractor KPI Dashboard in Excel is an instant download: the .xlsx workbook plus the Excel KPI Dashboard User Manual PDF, sample 2025 data included, every cell unlocked, lifetime access to the file you buy.
