Most insulation contractors know their revenue and almost nothing else. The waste on the truck, the board feet you actually get out of a foam set, the share of assessments that turn into signed work – all of it lives in someone’s head or in a spreadsheet nobody opens twice. The Insulation Contractor KPI Scorecard in Excel is a one-page monthly answer to that: ten insulation KPIs, a month picker, an MTD/YTD switch, and traffic lights that know which direction is good.
It is 100% formulas. No macros, no Power Query, no add-ins, nothing to enable, and it opens on any Excel from 2016 onward. The sample file ships loaded with a full 2025 year, so the first thing you see is a real month rather than an empty grid: November 2025 reads 4 Green, 4 Amber and 2 Red across four KPI groups.
One thing to be clear about before anything else. NextGenTemplates ships three families with confusingly similar names, and this article is about exactly one of them. This is the KPI Scorecard line – a monthly reporting tile wall driven by a month picker. It is not the slicer-driven Excel KPI Dashboard line, and it is not an analytical Excel dashboard built over a transaction table. They are different products that answer different questions, and plenty of contractors own two of them.
Key Features of the Insulation Contractor KPI Scorecard
- Ten insulation KPIs in four groups – Sales & Estimating (2), Installation Output (2), Install Quality (3) and Cost & Compliance (3).
- Direction-aware traffic lights. Seven KPIs are Upper-the-Better and three are Lower-the-Better. Insulation Waste Rate climbing shows red, not green, because the workbook knows lower is better for that metric.
- A month picker, an MTD / YTD toggle and a Vs. selector – compare the month against Target, against the same period last year, or against the prior month.
- A 12-month sparkline on every tile, next to the value, the target, the absolute change and the percentage change.
- A KPI Analysis page with Green/Amber/Red counts, achievement by KPI group as both a table and a column chart, and Top 5 / Bottom 5 tables for the selected month.
- A KPI Trend page that takes one KPI at a time and draws four charts: MTD vs Target, MTD vs PY, YTD vs Target and YTD vs PY – with that KPI’s group, unit, direction, formula and definition printed above them.
- Room for 20 KPIs. Ten arrive filled in; the Scorecard header has a KPI 1-10 / KPI 11-20 set picker for the rest.
- Editable RAG bands. Green at or above target, Amber within 10%, Red more than 10% off – change the percentages on one sheet and every page follows.
- Rename anything. Every page looks a KPI up by name, so renaming on KPI Definition flows everywhere, and a Check column turns red if you create a duplicate.
The Ten Insulation KPIs, and Why They Are the Ten
These are the exact metrics in the shipped file, with the November 2025 figures you can see on the Scorecard page. Every one of them is renameable, but they were chosen because they are the numbers an insulation business actually argues about.
| KPI | Group | Unit | Direction | Nov-25 vs target | Light |
|---|---|---|---|---|---|
| Insulation Revenue | Sales & Estimating | USD (000s) | Upper the better | 705.9 vs 682.7 | Green |
| Lead-to-Contract Rate | Sales & Estimating | % | Upper the better | 33.2 vs 39.9 | Red |
| Insulated Area Completed | Installation Output | K Sq Ft | Upper the better | 66.4 vs 70.3 | Amber |
| Spray Foam Yield | Installation Output | Bd Ft/Set | Upper the better | 14,499 vs 15,182 | Amber |
| R-Value Achieved vs Spec | Install Quality | % | Upper the better | 94.8 vs 96.8 | Amber |
| Blower Door ACH50 Result | Install Quality | ACH50 | Lower the better | 3.26 vs 3.34 | Green |
| Cavity Fill Coverage | Install Quality | % | Upper the better | 92.5 vs 91.3 | Green |
| Insulation Waste Rate | Cost & Compliance | % | Lower the better | 5.7 vs 4.9 | Red |
| Installed Cost per Sq Ft | Cost & Compliance | USD | Lower the better | 1.61 vs 1.53 | Amber |
| Rebate Paperwork On Time | Cost & Compliance | % | Upper the better | 91.4 vs 90.1 | Green |
Why the direction setting matters more than it sounds
Three of the ten are Lower-the-Better: Blower Door ACH50 Result, Insulation Waste Rate and Installed Cost per Sq Ft. On a naive scorecard, a waste rate rising from 4.9% to 5.7% is “up”, and an up arrow is green. Here it is a red light with a red up arrow, because the KPI Definition sheet marks it LTB and every page respects that. Blower door is the mirror image: 3.26 ACH50 against a 3.34 target is a green light with a green down arrow, because tighter is better.
That single column is what separates a scorecard you can hand to a foreman from one that quietly rewards the wrong behaviour.
The Nine Sheets, Page by Page
- Home – eight navigation tiles, each with a one-line description of the sheet it opens.

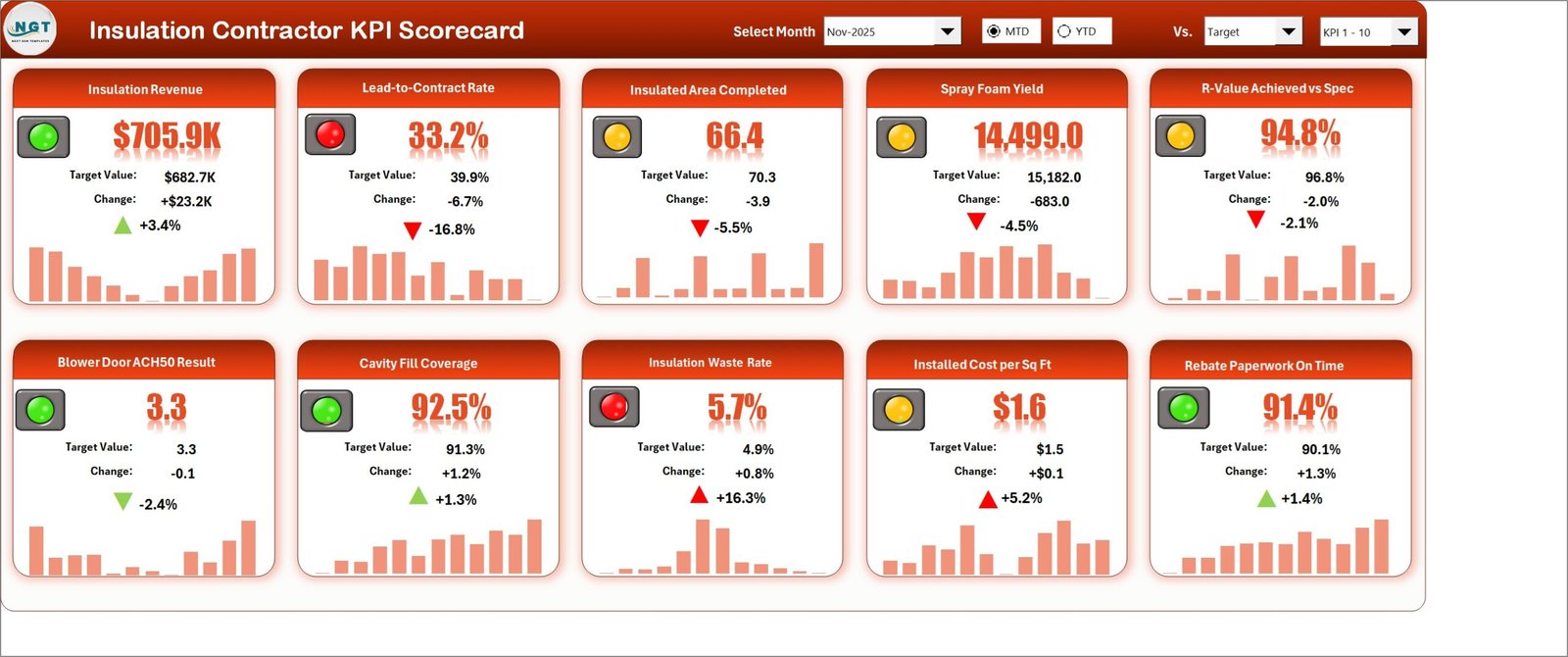

- Scorecard – the ten-tile month wall, with Select Month, MTD/YTD, the Vs. selector and the KPI set picker in the header.
- KPI Analysis – the group roll-up, the RAG counters and the Top 5 / Bottom 5 tables.
- KPI Trend – one KPI, four charts, plus its definition and formula.
- Input Data – one numbered block per KPI, twelve rows each, MTD Actual / Target / PY and YTD Actual / Target / PY.
- KPI Definition – name, group, unit, formula, definition, direction and YTD basis, with a Check column that flags duplicates.
- Color Settings – the RAG bands, the report title and the reporting year.
- Read Me – what you type, how UTB/LTB works, how to add a KPI.
- Get More Templates – the rest of the NextGenTemplates catalogue.
Two hidden support sheets do the lookup plumbing behind the scenes. You never touch them, and you never need to.

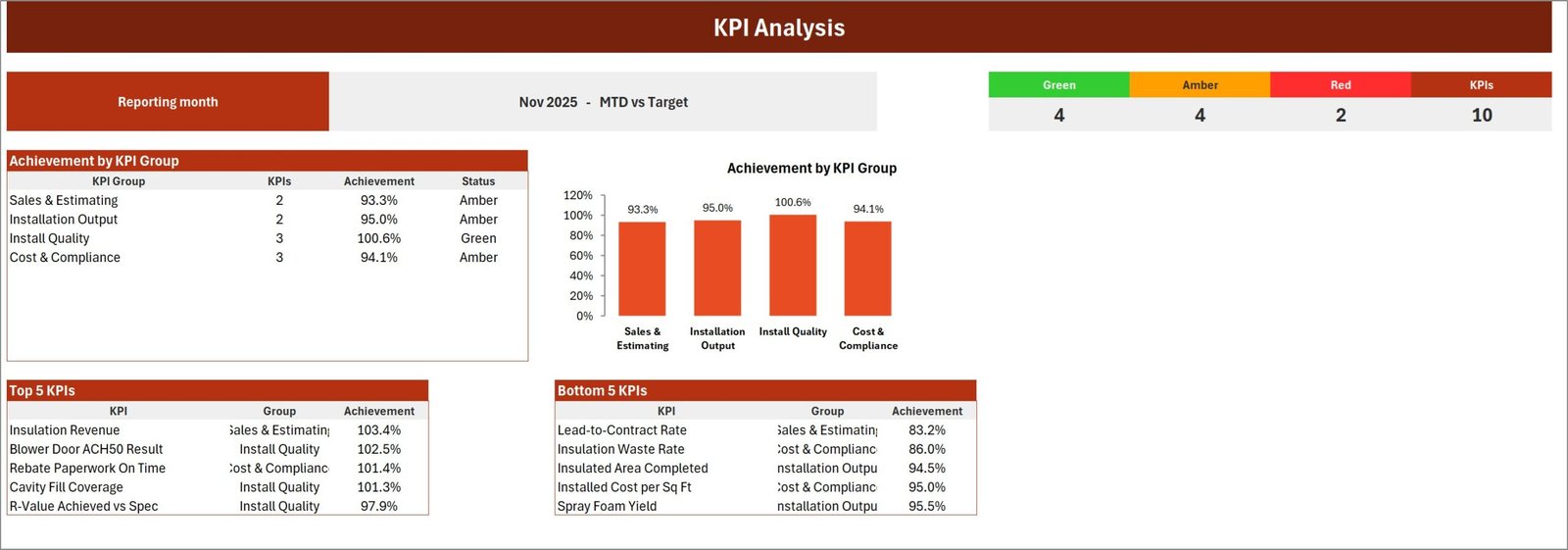

What the KPI Analysis page told us about November
In the shipped sample, Install Quality is the only group above target at 100.6%. Installation Output sits at 95.0%, Cost & Compliance at 94.1%, and Sales & Estimating is the weakest at 93.3%. The Bottom 5 table names the cause immediately: Lead-to-Contract Rate at 83.2% achievement, then Insulation Waste Rate at 86.0%. The Top 5 is led by Insulation Revenue at 103.4% and Blower Door ACH50 Result at 102.5%.
That is a recognisable insulation month: the crews are installing well, the office is not converting assessments, and material is walking off the job. You get to that reading in about fifteen seconds, which is the entire point of a scorecard.
Excel Scorecard vs. Google Sheets vs. Construction SaaS – Feature Comparison
| This scorecard (Excel) | Google Sheets scorecard | Procore / Buildertrend | |
|---|---|---|---|
| Cost | $9.99 one-off | $8.99 one-off | $300+ per month, typical |
| Platform | Excel 2016+ desktop | Browser, any device | Browser and mobile app |
| Setup time | Under 30 minutes | Under 30 minutes | Weeks, with onboarding |
| Macros required | None | None | Not applicable |
| Real-time collaboration | No – single workbook | Yes | Yes |
| Share with a link | No – send the file | Yes | Yes |
| Rename every KPI | Yes – all 20 slots | Yes | Limited to vendor fields |
| Pulls job costs automatically | No – you type them | No | Yes |
| Works offline | Yes | No | No |
| Year-1 cost at 5 users | $9.99 | $8.99 | $3,600+ |
Who Should Use This Template
It fits insulation and weatherisation contractors running roughly 4 to 40 installers – attic blow-in, wall batt, crawlspace and spray foam – who already keep job figures somewhere and need one page for a Monday review, a rebate-program review or a bank meeting. It fits an owner who wants Insulation Waste Rate and Installed Cost per Sq Ft sitting beside Lead-to-Contract Rate month after month, in the same shape, so the comparison is honest.
It does not fit anyone who wants the numbers to arrive on their own. There is no connector to Buildertrend, Procore, Knowify, QuickBooks, a utility rebate portal or any energy-modelling package – you type the month’s figures on Input Data. It does not recalculate year-to-date for you either, and that is deliberate: the correct roll-up is a sum for Insulation Revenue and Insulated Area Completed but an average for rates like Cavity Fill Coverage, so the workbook asks you for both and asks you to record the rule in the YTD Basis column. It is not an estimating, takeoff or job-costing tool, it runs no energy model, it sends no alerts, and it is not a rebate-submission system.
Real-World Use Cases
Ray, owner of a 14-installer crew in Ohio. His foam sets were running short and nobody could say by how much. He now shows the Spray Foam Yield tile – 14,499 board feet per set against a 15,182 target, amber – with twelve months of sparkline behind it, and orders material against a number instead of a hunch.
Alicia, operations manager at a weatherisation firm. Her Monday pack used to be five screenshots. It is now one Scorecard page and one KPI Analysis page: Install Quality green at 100.6%, Sales & Estimating weakest at 93.3%. The meeting starts at the problem instead of at the agenda.
Dev, an estimator watching assessments stop converting. Lead-to-Contract Rate at 33.2% against a 39.9% target, bottom of the Bottom 5 table at 83.2% achievement, made the case for reworking the home-assessment follow-up that nothing else had managed to make.
A crew lead defending a job. Cavity Fill Coverage at 92.5% against a 91.3% target, green, with R-Value Achieved vs Spec at 94.8%, is a far better answer to a GC complaint than “the guys are careful”.
Advantages of the Insulation Contractor KPI Scorecard
- Nothing to enable. No .xlsm, no macro-security prompt, no IT ticket. Formulas, conditional formatting, camera pictures and sparklines only.
- It ships full. A complete 2025 of MTD and YTD data means you can evaluate the workbook before you commit your own numbers to it.
- Every screen is shown before purchase. All nine sheets appear in the product gallery.
- It is honest about direction. Three LTB metrics behave correctly instead of quietly turning bad news green.
- It is small. A few hundred KB, because there is no data model and no query engine hiding inside it.
- It is yours to rename. If your business measures blown-in density or truck utilisation instead, type those in and the whole workbook follows.
Opportunities for Improvement
Two honest limitations. First, data entry is manual. Twelve months across ten KPIs, MTD and YTD, Actual/Target/PY, is 720 cells if you fill the whole year from scratch – though in practice you type one month at a time, which is about sixty cells. Second, it is a single workbook, so two people cannot edit it at once. If shared editing matters more than offline access, the Google Sheets edition is the better fit.
Third, and worth saying plainly: this is a reporting layer, not a system of record. If your job costs are wrong in the accounting package, they will be wrong here too, faster and in a nicer colour.
Best Practices
- Set the title and year first. On Color Settings, so the month picker reads Nov-25 rather than a bare month name.
- Fix your KPI list before you type numbers. Rename on KPI Definition, set Unit, Type and YTD Basis, and only then move to Input Data.
- Write the YTD rule down. The YTD Basis column exists so the next person fills it the same way you did. Sum for volumes and amounts, average for rates.
- Move the bands if 10% is wrong for you. A 10% amber tolerance is generous for cost per square foot and tight for lead conversion. Change C5:C7 and G5:G7 on Color Settings.
- Present from KPI Analysis, then drill with KPI Trend. The group roll-up sets the agenda; the four-chart page defends a single number.
- Use the Vs. selector deliberately. Target answers “are we on plan”; PY answers “are we better than last year”; Prior Month answers “is it moving”. They are three different meetings.
Frequently Asked Questions
Does this connect to Buildertrend, Procore, Knowify or QuickBooks?
No. There is no connector, no import and no API. You type each month’s figures on Input Data. That is what keeps the file small and macro-free.
Are macros required?
No. It is 100% formulas, conditional formatting, camera pictures and sparklines. There is no security prompt to clear.
Can I change the KPI names to my own?
Yes – all twenty slots. Every page looks a KPI up by name, so renaming on KPI Definition flows through the Scorecard, KPI Analysis and KPI Trend automatically. The Check column warns you about duplicates.
Does it handle Lower-the-Better metrics correctly?
Yes, and that is the point of the Type column. Blower Door ACH50 Result, Insulation Waste Rate and Installed Cost per Sq Ft are LTB, so going down is green and going up is red – the opposite of the seven UTB metrics.
Does it calculate year-to-date for me?
No, and the Read Me says so plainly. You type YTD alongside MTD, because the right roll-up differs by KPI. Record which rule you used in the YTD Basis column.
How many KPIs can it hold?
Twenty. Ten ship filled in; the Scorecard shows ten at a time and the header’s KPI set picker switches between KPI 1-10 and KPI 11-20.
Which Excel versions does it work on?
Excel 2016 and later on Windows or Mac desktop. It opens in Excel for the web and on mobile, but the camera pictures and the header controls are designed for the desktop app.
Is this the same as the Excel KPI Dashboard?
No. The Excel KPI Dashboard line is slicer-driven and built for interactive analysis across a dataset. This scorecard is a monthly reporting page driven by a month picker. They answer different questions, and neither replaces the other.
Does it prove compliance with a utility rebate program?
No. Rebate Paperwork On Time is a percentage you calculate and type. The workbook lodges nothing, keeps no homeowner records and satisfies no program requirement.
Is there a Google Sheets version?
Yes – an Insulation Contractor KPI Scorecard in Google Sheets with the same ten KPIs, the same four groups and the same RAG logic is being released alongside this Excel edition, for teams that need a browser-based, shareable copy. It goes live at the same time as the Excel one; look for it under the same name in the Google Sheets catalogue.
Explore Relevant Templates
The same scorecard exists for the trades next door: Drywall Contractor KPI Scorecard in Excel, HVAC Contractor KPI Scorecard in Excel, Roofing Contractor KPI Scorecard in Excel, Masonry Contractor KPI Scorecard in Excel, Painting Contractor KPI Scorecard in Excel, Flooring Installation KPI Scorecard in Excel, Electrical Contractor KPI Scorecard in Excel and Plumbing Business KPI Scorecard in Excel. A Concrete Contractor KPI Scorecard in Excel is in preparation and is not published yet.
About the Author
Built by PK – Microsoft Certified Professional with 15+ years of Excel, Google Sheets and Power BI experience. Founder of NextGenTemplates, reaching 300K+ subscribers across YouTube channels. Every template is hand-built and tested before release.
Conclusion
An insulation business is measured on things that are easy to feel and hard to state: whether the foam is yielding, whether the cavities are actually full, whether the office is converting the assessments the crews earned. The Insulation Contractor KPI Scorecard in Excel turns those into ten tiles with a target, a light, an arrow and twelve months of history behind each one – and it does it without a macro, a subscription or a login.
Get the Insulation Contractor KPI Scorecard in Excel – $9.99, instant download, user manual PDF included in the ZIP, free lifetime updates to the file. Questions before you buy? Email info@nextgentemplates.com.
